Termini & Connectors

Moog Termini & Connectors

Rugged fiber optic networks require the transmission cables to be made of the highest quality optical components.  Termini & connectors, cables, and transceivers are all selected at the design phase for their high reliability and built for use in harsh environment applications. Higher shock, vibration, and more stringent handling requirements are needed as well as adherence to Military standards such as MIL-PRF 29504 and Commercial Aerospace standards such as ARINC 801. Industry standard termini from leading OEMs such as Amphenol, Glenair, Radiall are utilized via direct or established supplier relationships.

Moog unique rugged LC platform includes these interfaces:

• LC-R Connector: Patented and proven in warfighters around the world, the LC-R connector is a very rugged fiber interface that creates a semi-permanent fiber optic pigtail by attaching to a transceiver receptacle with a screw and tab design making the connection secure but serviceable.
• LC-T Connector: Patented and proven in commercial airplanes as well as military applications, the LC-T connector is compatible with the industry standard LC receptacles but utilizes the same dimensional standards as a standard LC connector. The LC-T connector distinguishes itself from a standard plastic LC connector with it’s all metal construction and inclusion of novel features to extend its operation in challenging demanding  environments.

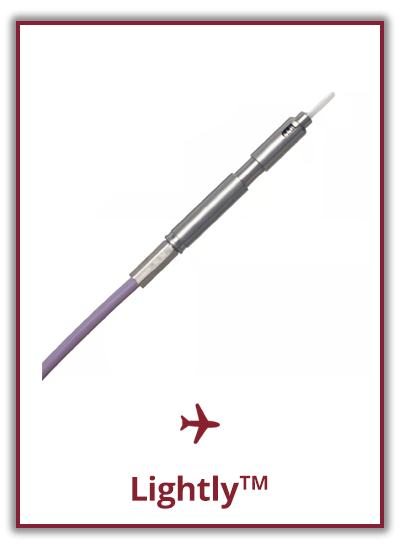

• Lightly: A novel ARINC 801 terminus configuration that includes a removal interface feature eliminating the need for FOD concern from the ubiquitous fiber/copper termini removal tool.

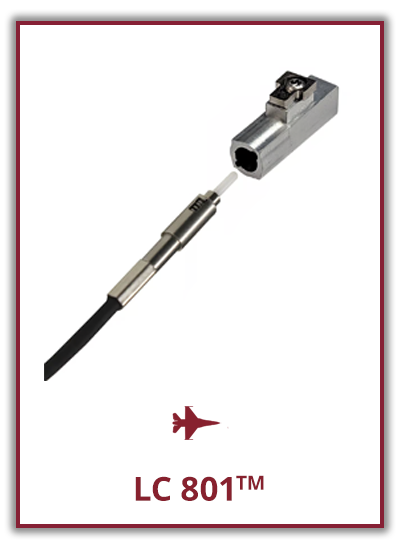

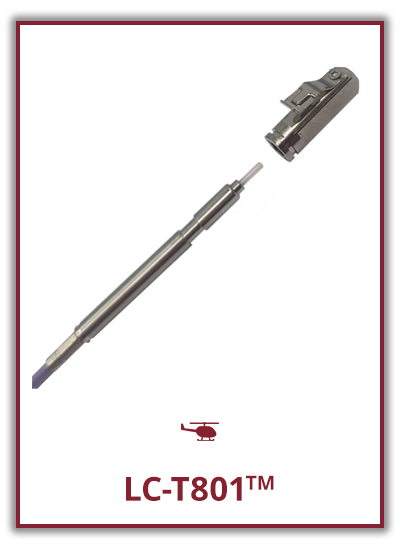

Moogs’ RJ and SFF/SFB transceiver product platforms utilize the LC interface including Moogs’ LC-R and LC-T. They may also utilize an ARINC 801 terminus  with the inclusion of the LC-801 adapter while the RCP and Essential transceivers utilize an ARINC 801 terminus receptacle. Moogs’ Lightly terminus is a tool-less ARINC 801 termini that is designed to install into the RCP and Essential transceivers, as well as industry standard connectors that utilize a fluorosilicone gasket.
