LC-801™

Description

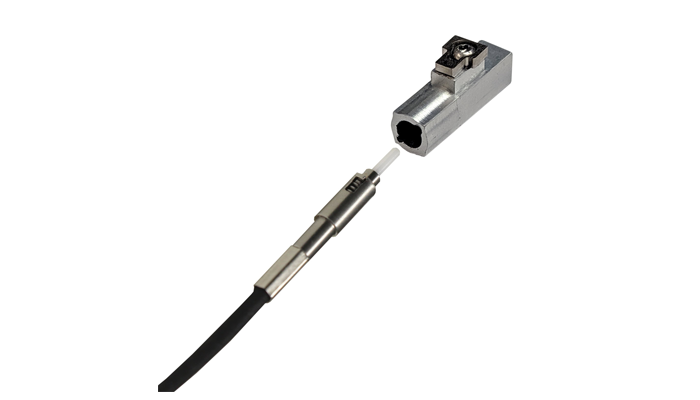

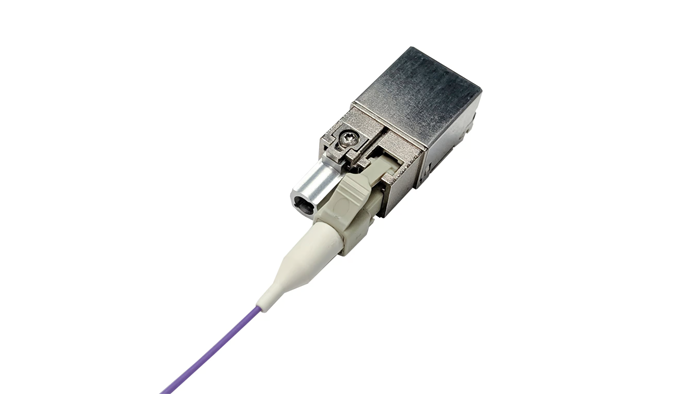

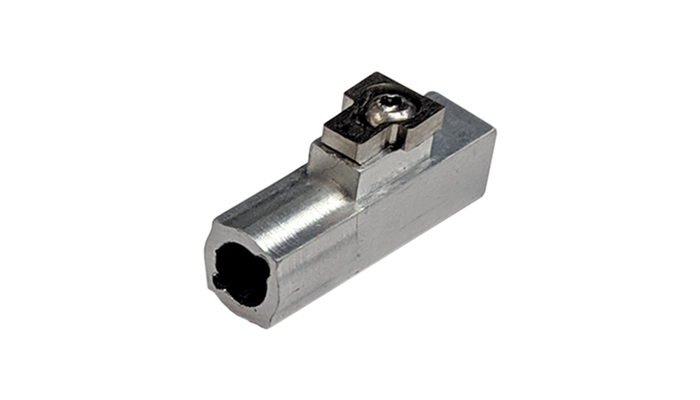

The LC-801 is an LC Plug to ARINC 801 receptacle adapter utilizing features found in the Moog's LC Rugged (LC-R) and industry standard ARINC 801 terminus. The LC-801 turns LC receptacles into avionics grade interfaces allowing for factory or easy installation using Moog's LC-Rugged hardware. The LC-801 uses identical spring clips to those utilized by the Moogs’ RCP module, and similar to those implemented in 38999 circulars, EN4165 squares, and the rectangular EPXB connectors. The Moog LC-801 is a rugged connector that allows for any ARINC 801 cable to fit into transceivers with LC receptacles, including the RJ, SFB, SFF and SFP. The rugged aluminum construction meets and exceeds industrial temperature operation and meets MIL-STD- 883 shock and vibration.
