LC-T801™

Description

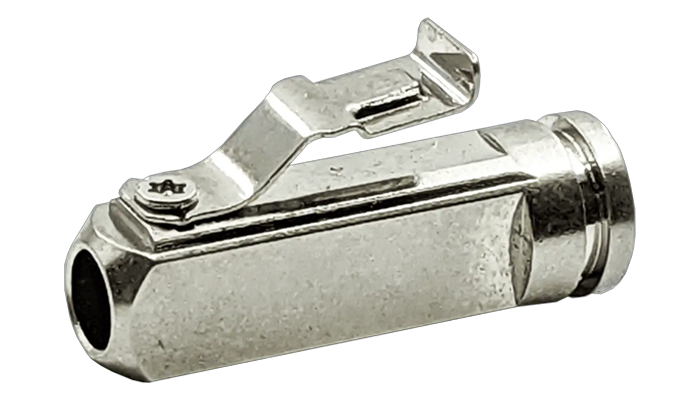

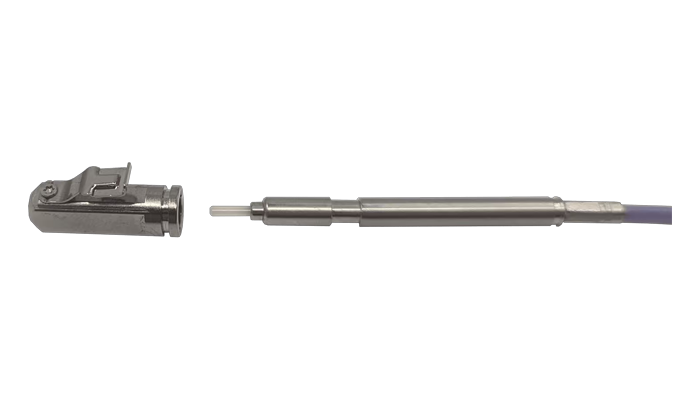

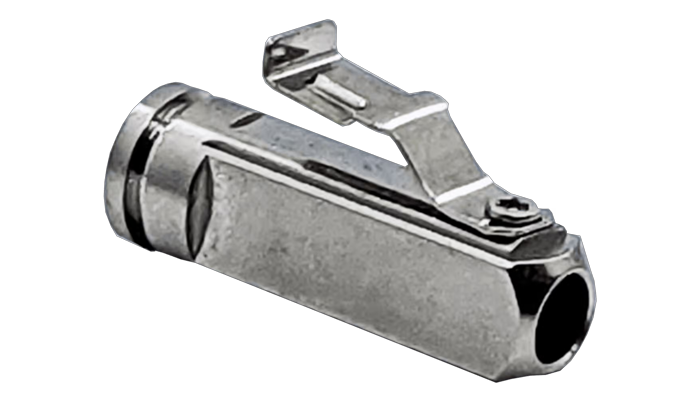

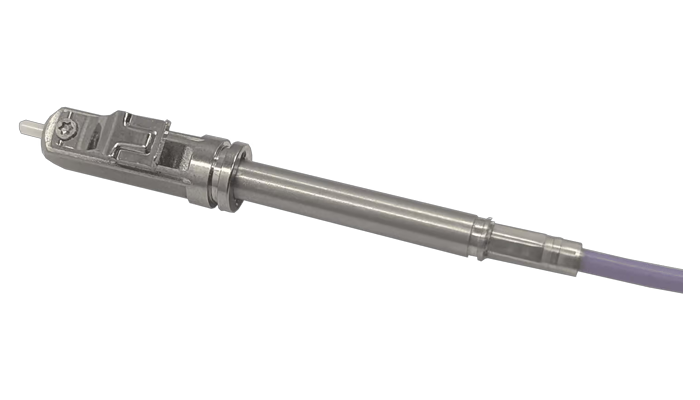

The LC-T801 is a receptacle adapter that converts an LC receptacle into a 1.25mm ARINC 801 receptacle utilizing features found in the Moog LC Tab (LC-T) connector and industry-standard ARINC 801 terminus retention features. These design features allow transceivers with LC receptacles to upgrade to a more rugged ARINC 801 style terminus. This ARINC 801 terminus to LC receptacle adapter converts TIA/EIA-60410B compliant LC receptacles into an avionics grade ARINC 801 interface. The rugged metal design replaces the need for plastic adapters and intermediate fiber jumpers. It fits Moog’ RJ and SFF LC transceiver receptacles. Available for factory or end-user installation using Moog’s proven LC-T hardware. Its metal design improves performance over temperature inside LRUs and its has a secure interface for high shock and vibration environments that meets MIL-STD-883 shock and vibration requirements. It has improved tamper resistance vs. plastic tab LCs.
