C-Beam™

Description

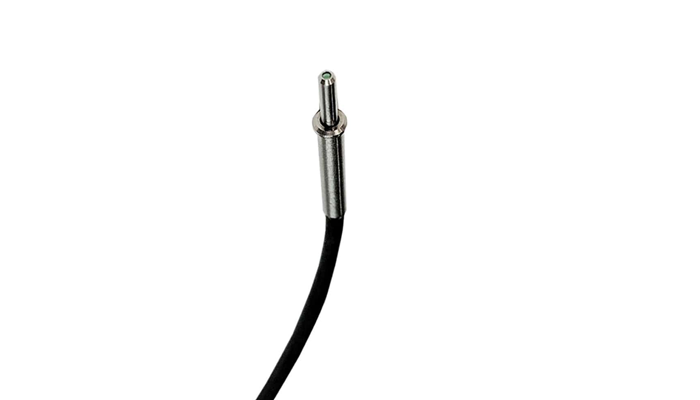

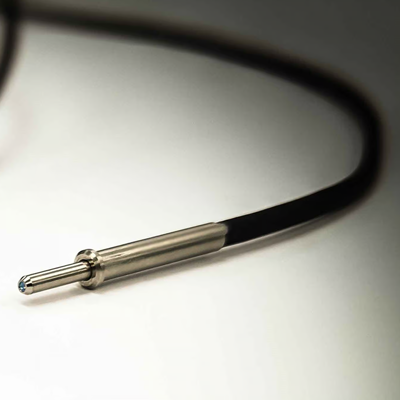

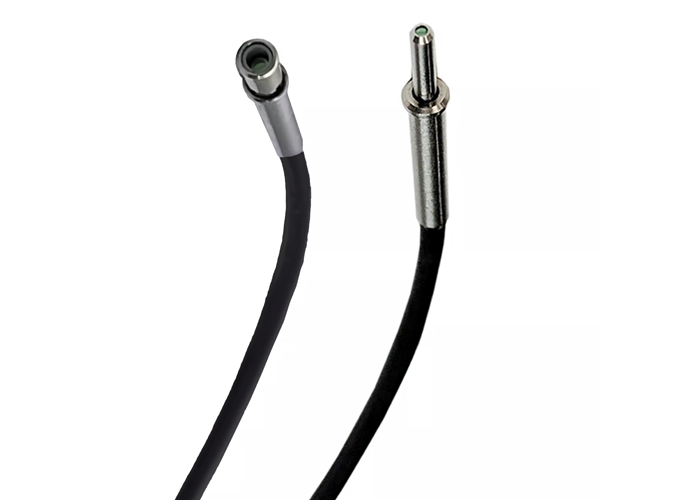

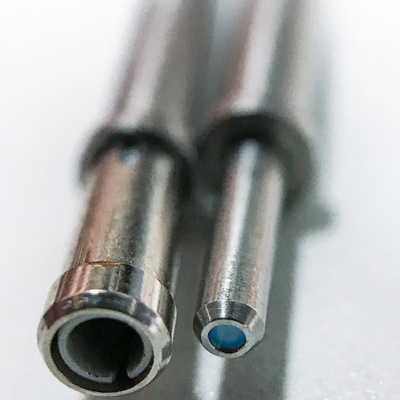

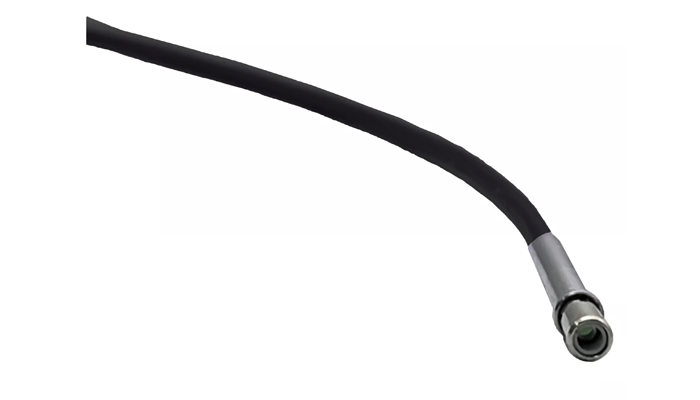

The C-Beam™ terminus product platform is an Expanded Beam Pin & Socket style optical interface with all metal bodies integrated with a gradient-index lens. These termini use their lenses to expand the light path between the mated terminus pairs to provide an additional layer of protection against optical discontinuity by reducing risk from foreign objects and debris (FOD) and discontinuities in ruggedized environments. Expanded Beam is used in harsh environments where vibration, dust, moisture, or wind are prevalent because of its ability to minimize the environmental effects. Combine that with the Micro Military Connector and you have complete connection system for your design.

Specifications
Terminus Style: Mated Pair (Pin & Socket)
Connector Style: Micro D38999 Connectors
Multimode: 50/125µm Fiber Optic Cables
Lensing: Repairable GRIN (Graded-Index) Lensing
Cavity Size: Size 16 Cavity
