LC Rugged™

Description

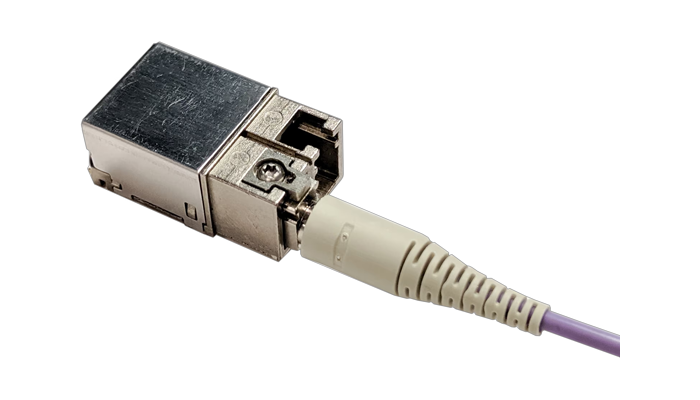

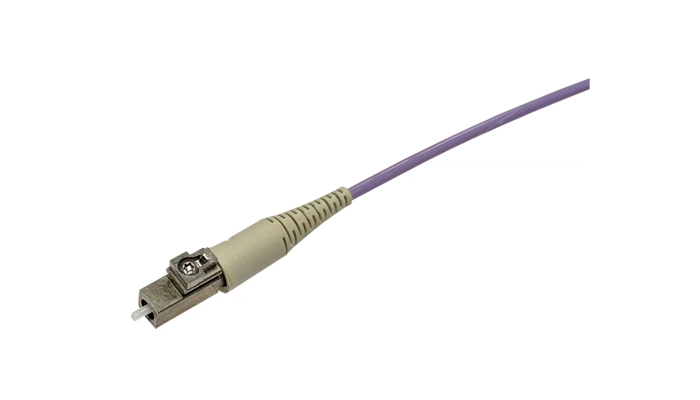

The LC Rugged™ (LC-R) is an all-metal construction LC connector with a latching screw system that offers a highly reliable and separable interface. Standard plastic LCs can sag over time and temperature while the the LC Rugged™ offers a more secure metal connection. Designed to MIL-STD, TIA, and ARINC 801 environmental performance, the patented retention mechanism offers excellent connector retention in extreme environments. LC-R insertion loss averages 0.06dB using an 850nm VCSEL light source. The LC-R can be ordered as part of a cable assembly or a fully integrated solution as part of a pigtailed transceiver assembly. The rugged all metal design replaces plastic LC connector tab. A flush screw/T-clip to the top of the LC receptacle design makes thermal and fiber management easier inside LRU’s for repair of fiber jumper to box/LRU level connector. It's secure interface is ideal for high shock & vibration applications with excellent insertion and return loss.
