Lightly™

Description

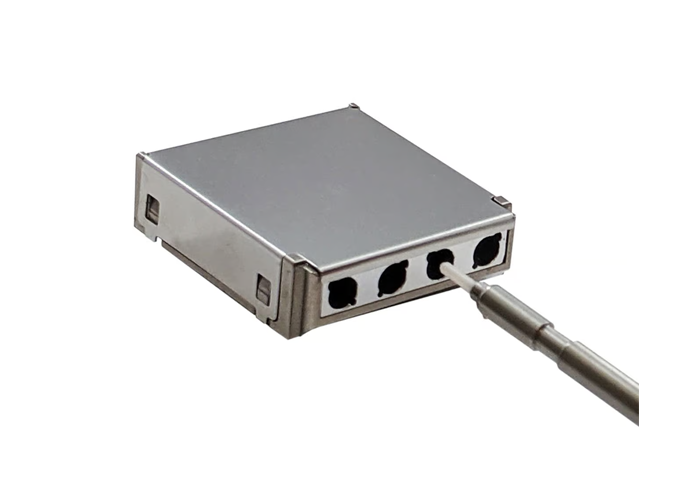

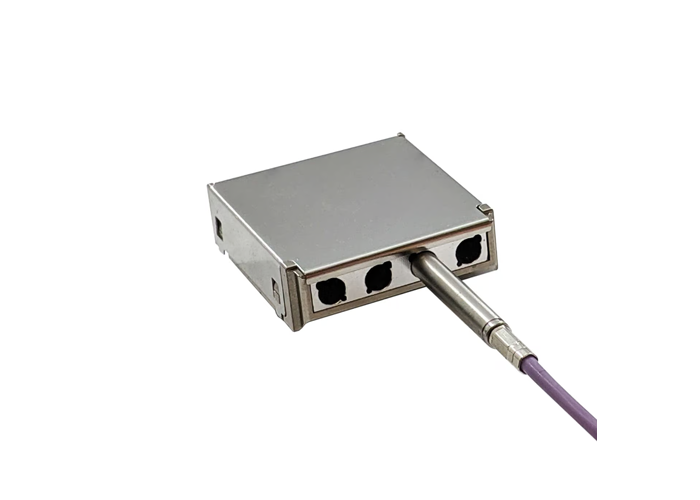

Building upon the ARINC 801 terminus robust design, the Lightly™ terminus serves as the next iteration in usability for the existing design. By incorporating the ARINC 801 insertion and removal mechanism into the Lightly™ terminus body, users will no longer need to carry a separate tool into a production or maintenance area. This eliminates Foreign Object Debris (FOD) concerns while reducing rework and testing time. Utilizing the industry standard ARINC 801 terminus design as a baseline, the Lightly™ terminus excels in providing reliable and robust optical performance in the harshest of environments. The Lightly™ terminus can be installed with one hand into an ARINC 801 receptacle such as Moog's RCP transceiver or a MIL/Aero Circular Connector. With a wide variety of options, the Lightly™ terminus product family supports the needs for any optical network.

• ARINC 801 terminus with built-in insertion/removal tool
• Standard ARINC 801 size 16 termini body
• Several length options for use in a variety of receptacles
• High mating cycle count
• Works with 1.6-2.2mm diameter fiber cables and 900µm buffered fibers.
• Eliminates need for blue & white insertion/removal tool (M81969/14)
• Eliminates need for Daniels insertion/removal tool (M81969/8)
• Reduced FOD concerns
• Meets MIL-STD-883 and ARINC 801 shock and vibration requirements
