Essential™

Essential™

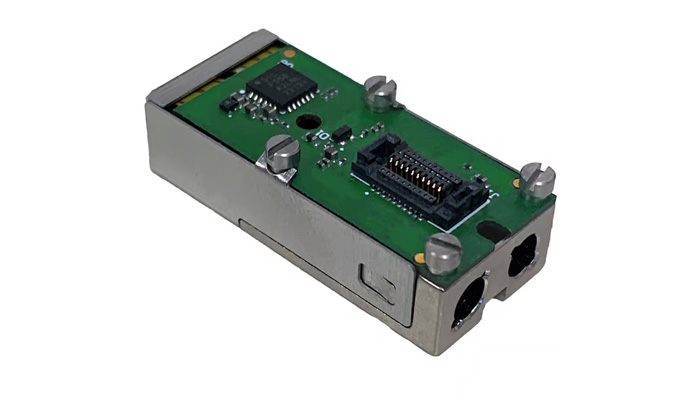

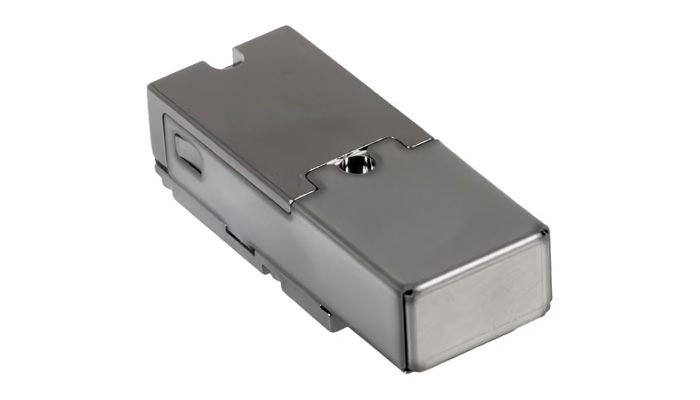

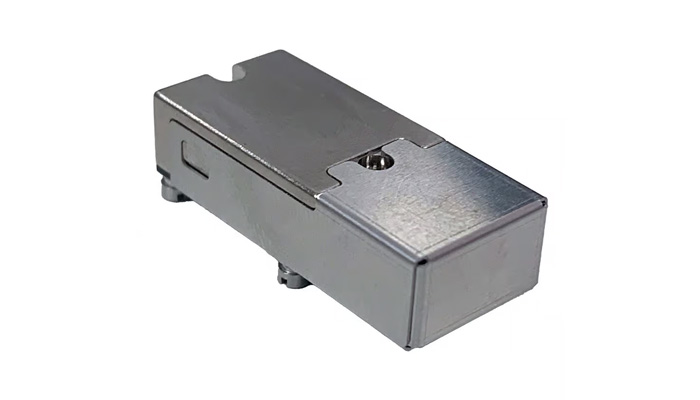

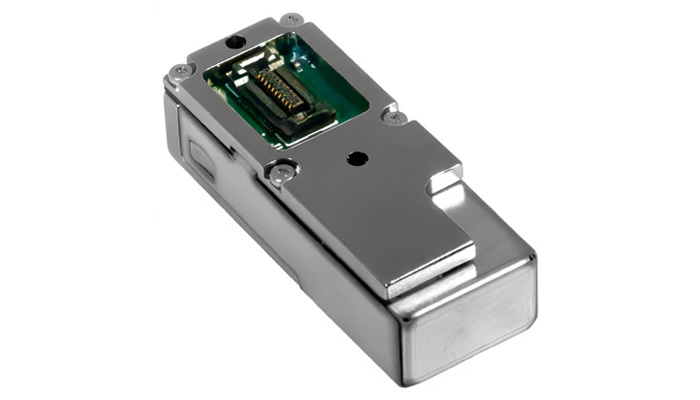

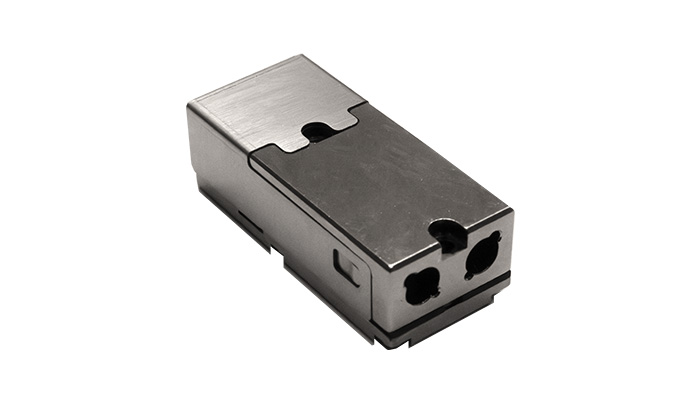

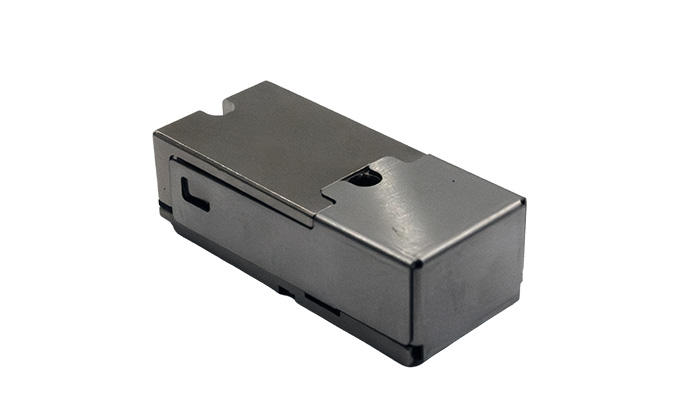

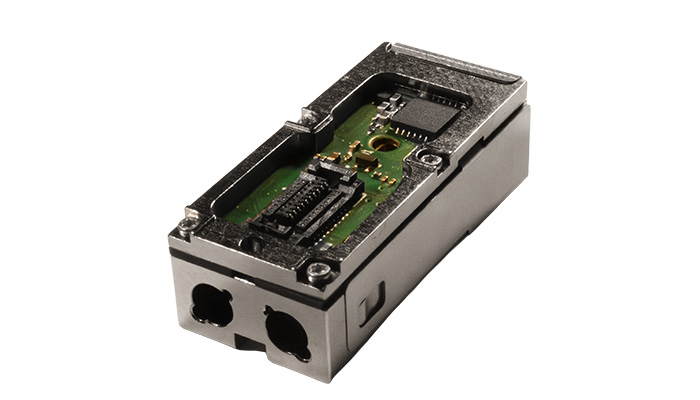

The Essential™ is a one or two-channel electrically pluggable rugged optical transceiver capable of duplex, dual transmitter, dual receiver, or bi-directional configurations. This component supports data rates from 1-28 Gbps with compliance to IEEE Ethernet, Fibre Channel, Infiniband, sFPDP, XAUI, FC-AV/ARINC 818, more. It features an industry standard ARINC 801 optical interface for rugged connectivity. The Essential™ is electrically pluggable to a wave solderable connector with screws for high shock/vibe environments.

Products

Part Number	Data Sheet	Data Rate	Fiber	Wavelength	TX	RX	P. out Min	P. out Max	Rx Sens Max	Link Budget Min	Operating Temp Range
(Product Page)	(Download Datasheet)			nm			dBm	dBm	dBm	dB	A	M	Z	S
ESL-10G-SR	-	6-10Gbps	MMF	850	VCSEL	PIN	-5	-1	-11.1	6.1	.	.	.
ESL-10G-SR-TX	-	6-10Gbps	MMF	850	VCSEL	n/a	-5	-1	-	-	.	.	.
ESL-10G-SR-RX	-	6-10Gbps	MMF	850	n/a	PIN	-	-	-11.1	-	.	.	.
ESL-10G-BR10	Data Sheet	6-10Gbps	SMF	1270/1330	DFB	PIN	-8.2	-0.5	-14.4	6.2	-
