ESL-10G-SR-RX

Description

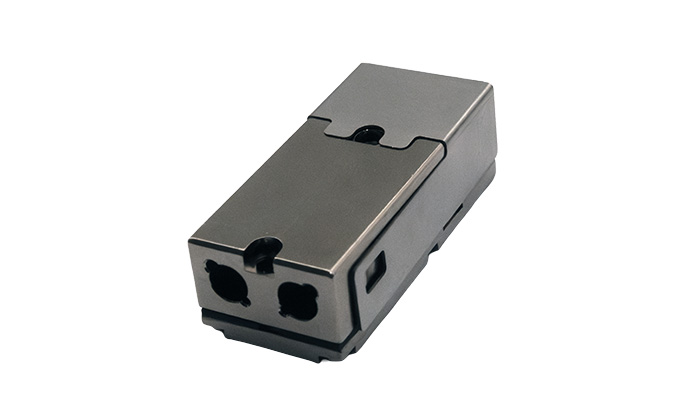

The ESL-10G-SR-TX is a duplex rugged pluggable optical transceiver with two ARINC 801 receptacles. It supports data rates of 6 to 10.3125Gbps and features dual 850nm PIN receivers. The ESL-10G-SR-RX has IEEE compliant operation for 10GBASE-SR and is IEEE Aligned Operation for 1000BASE-SX. It includes SFF-8472 compliant control and diagnostics monitor interface. It operates at –40°C to 85°C and features a board to board pluggable connector.
