ESL-10G-SR

Description

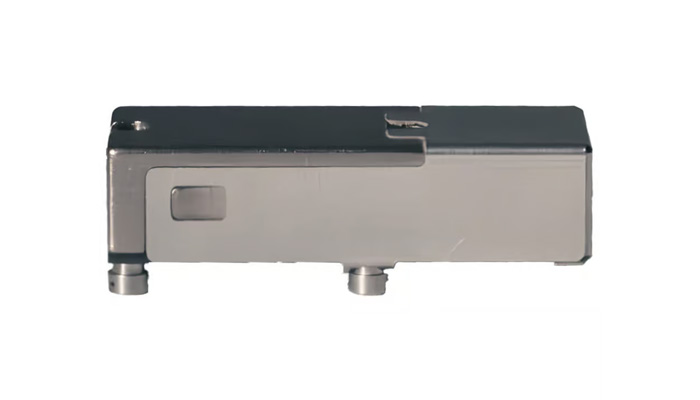

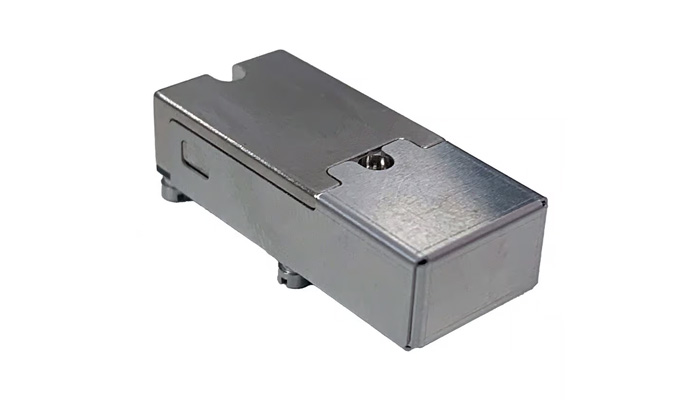

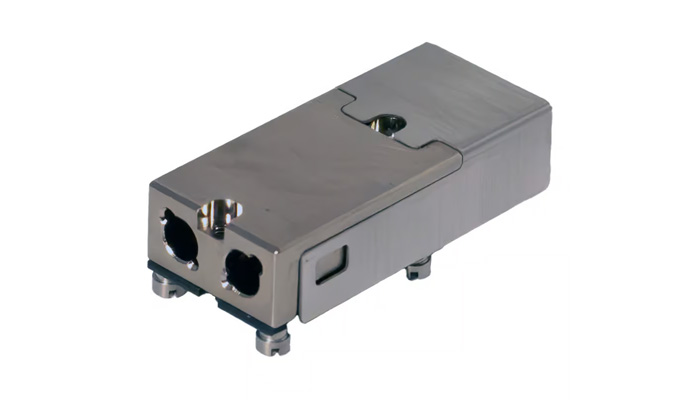

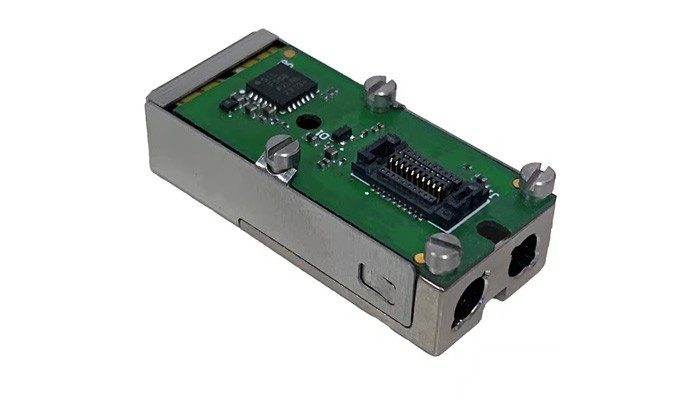

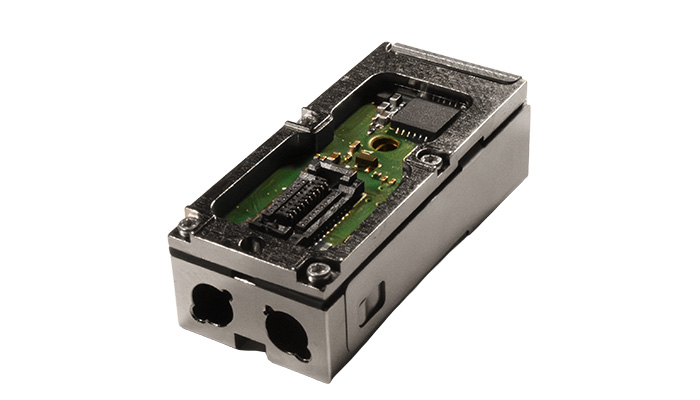

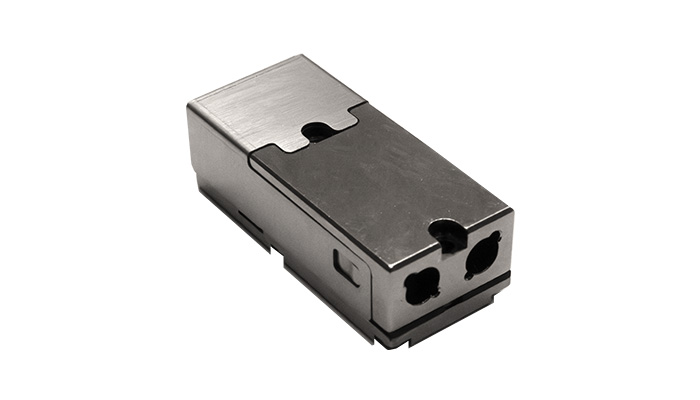

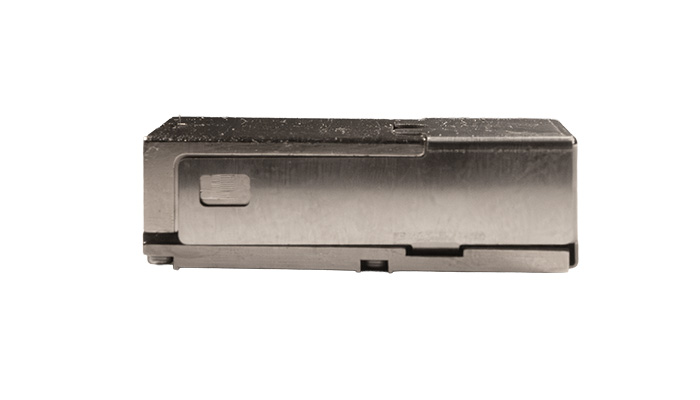

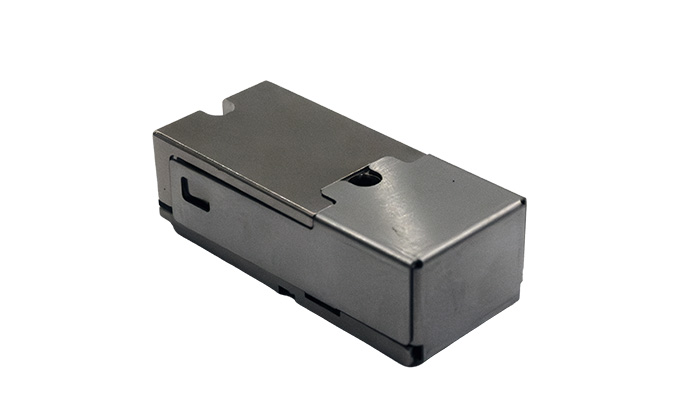

The ESL-10G-SR is a duplex rugged pluggable optical transceiver with two ARINC 801 receptacles. It supports data rates of 6 to 10.3125Gbps and features an 850nm VCSEL transmitter and PIN receiver. The ESL-10G-SR has a typical reach of 82m on OM2, 300m on OM3 and 400m on OM4. It's compliant to IEC-60825-1 Class 1 laser eye safe and has SFF-8472 compliant control and diagnostics monitor interface. The Essential also features a board to board pluggable connector.
