SFF-3G-TX2

Description

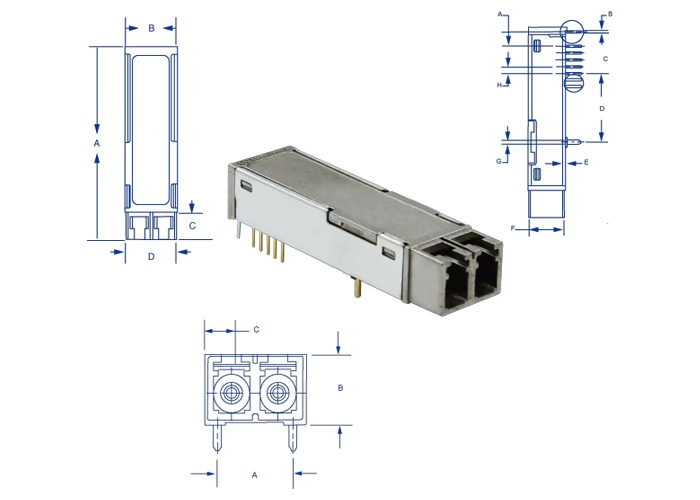

The SFF-3G-TX2 is multi-rate compliant for FC-PI-2 Fibre Channel, ARINC 818 and Infiniband. It runs on 850nm Oxide VCSEL Lasers. With an industrial temperature range standard of –40°C to +85°C, it has an extended temperature range option of –40°C to +95°C. This rugged optical transceiver has an industry standard MSA 2x5 footprint and features a duplex LC connector. It is MIL STD 883 certified and has a conformal coated PCB option, compliant with IPC-CC830B, IPC-2221, and J-STD-001.
