SFB-M-35

Description

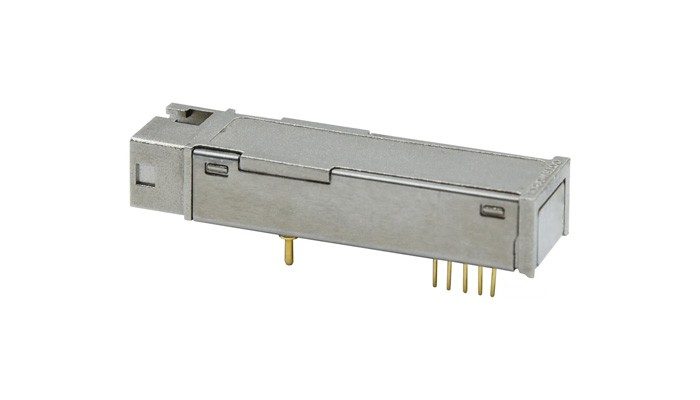

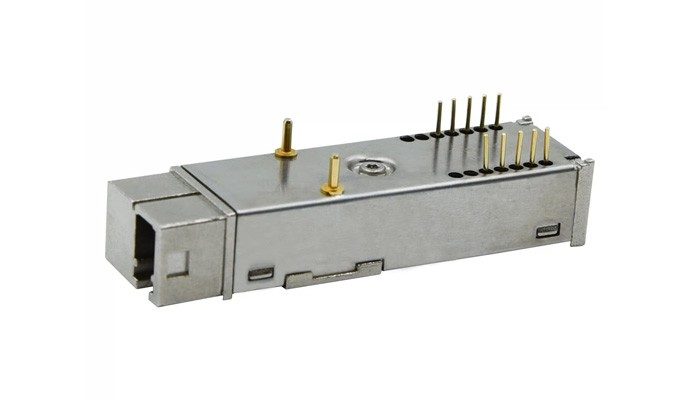

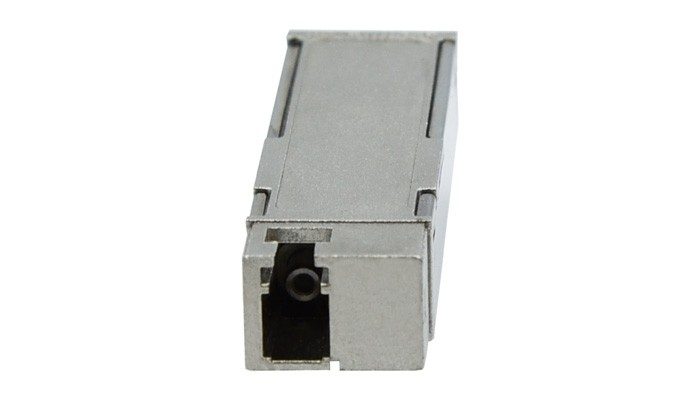

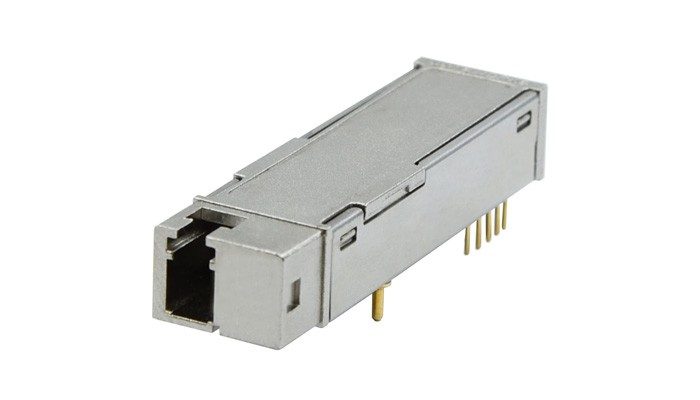

The SFB-M-35 is a bi-directional, single fiber transmission rugged optical transceiver. It features rugged through-hole mounting posts, rear ground case posts, and a full-metal case to optimize EMI performance. This transceiver has options for AC-coupled or DC-coupled data and options for LVPECL or LVTTL signal detect.

Jump To:
Specifications
Support Materials
Lets Talk
SFB-M-35 Specifications
Part Number:M-35
Data Range:155Mbps
Wavelength:1310/1550nm
Channel Configuration:BiDi
Min. Optical Power:-9dBm
Max. Optical Power:-3dBm
RX Sensitivity Max:-31dBm
