SFB-G-BX10

Description

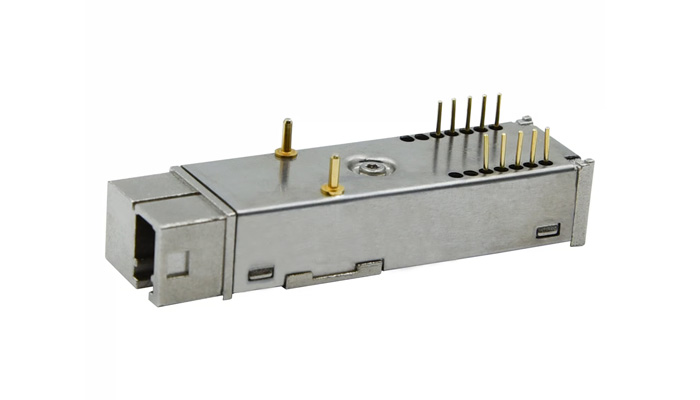

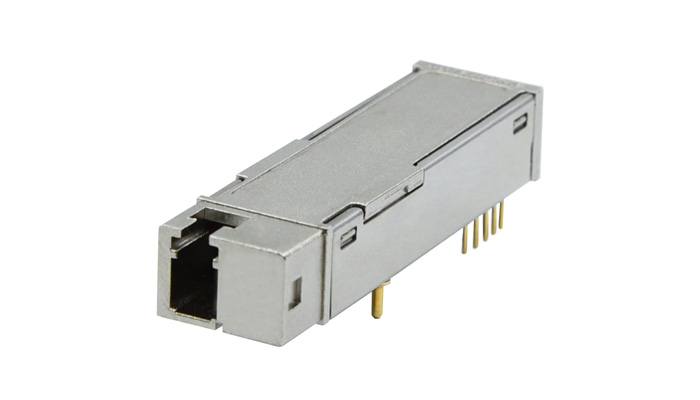

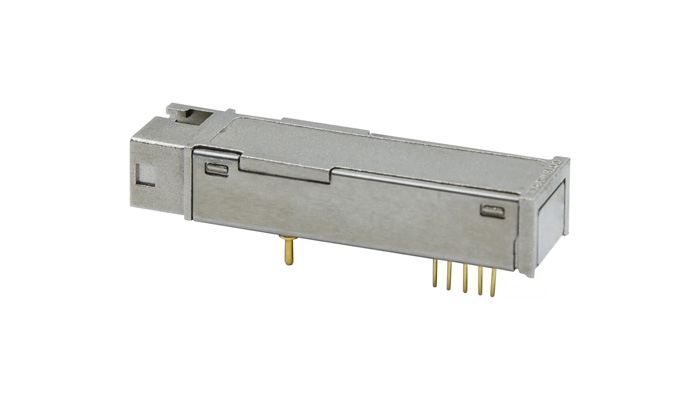

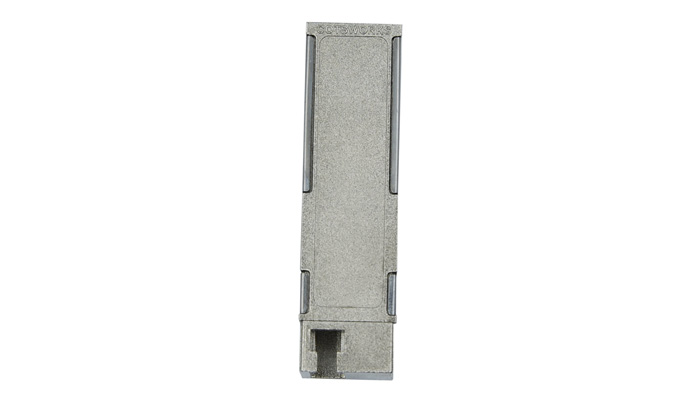

The SFB-G-BX10 is a bi-directional transceiver that uses single fiber transmission. This rugged optical transceiver features 1310/1550 DFB lasers for extended reach. It has an industry standard 2x5 electrical footprint with an optional 2x7 electrical footprint for digital diagnostics support. It has a simplex LC optical connector interface and rugged through-hole mounting and optional rear ground case posts. It has a full-metal case to optimize EMI performance with a Parylene C coating option. –40°C to +85°C operating temperature. Many of its optical features are aligned to 802.3ah 1000BASE-BX10. This transceiver has 400KHz and 1.25Gbps calibration profiles.
