RJ-5G-SX-C

Description

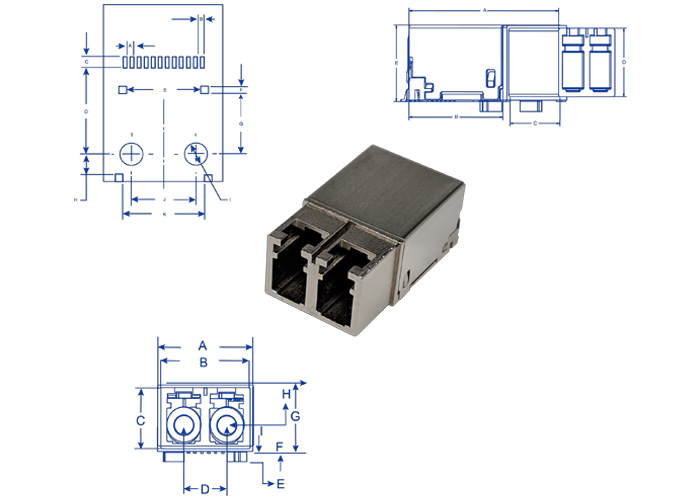

The RJ-5G-SX-C runs at 125Mbps to 5Gbps on duplex data links. It's compliant to 802.3z Ethernet, Fibre Channel (1x/2x/4x), Infiniband, sFPDP, XAUI, FCAV and ARINC 818. This rugged optical transceiver features an 850nm VCSEL laser transmitter and PIN receiver with duplex LC or dual ARINC-801 connector options. It also features a 1x12 electrical interface with Digital Diagnostics (DDMI) standard and outputs AC-coupled transmitter & receiver data. ATEX and IECEx certified configuration available (contact COTSWORKS).
