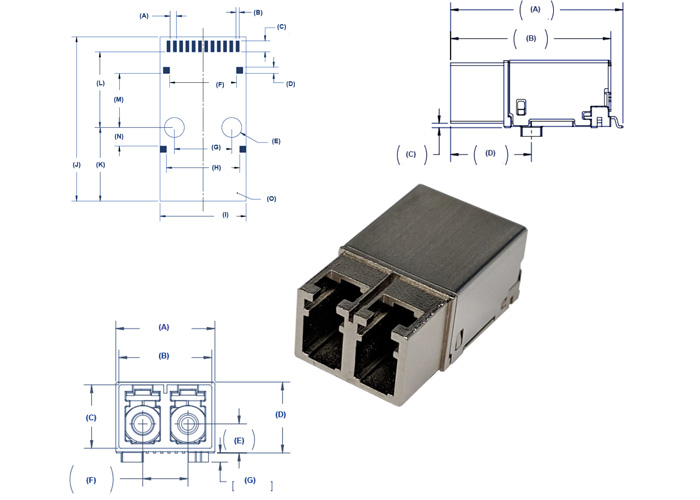

RJ-3G-S-LX(SDI)

Description

The RJ-3G-S-LX runs on 1.25Gbps to 3.125Gbps duplex data links. It is compliant to 802.3z Ethernet, Fiber Channel (1x/2x/3x), Infiniband SDR, sFPDP, FCAV and ARINC818. The transceiver is compatible with single-mode and multimode fiber and includes a 1310nm FP laser transmitter and a PIN Receiver. It features a rugged LC connector housing including screw mounted OSAs. This rugged optical transceiver outputs AC-coupled transmitter & receiver data and has conformal coating options for harsh environment use. COTSWORKS RJs are fully tested over the operating temperature range. Pigtail Assembly option is available. Contact COTSWORKS for details.
