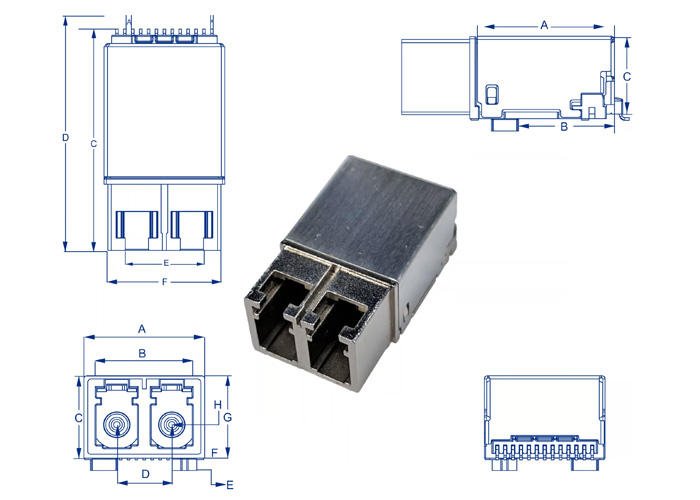

RJ-28G-SR

Description

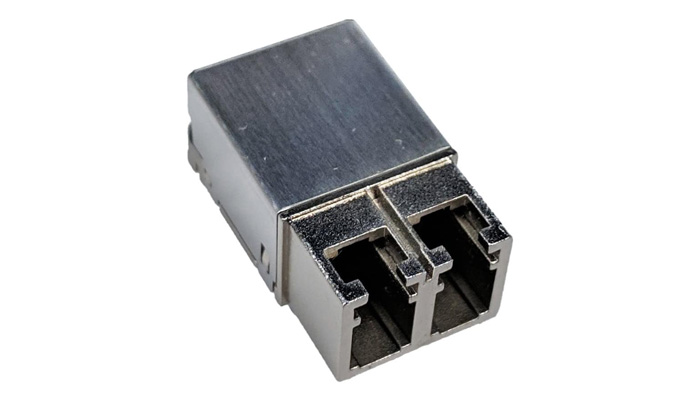

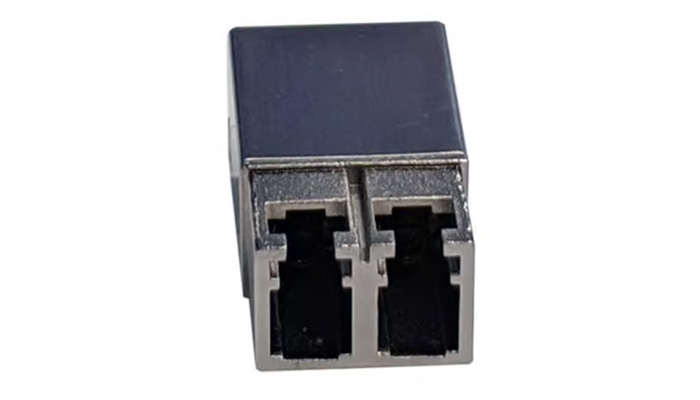

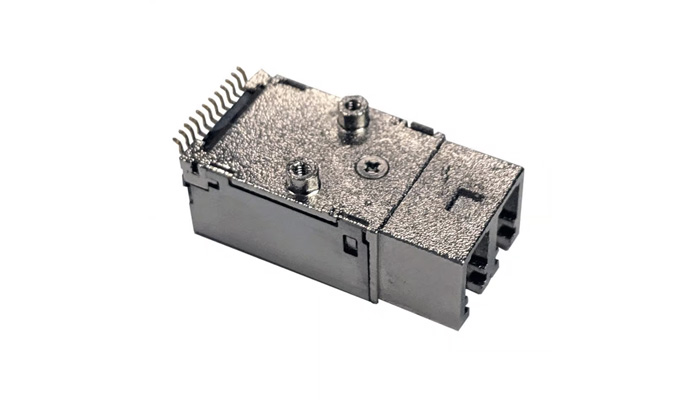

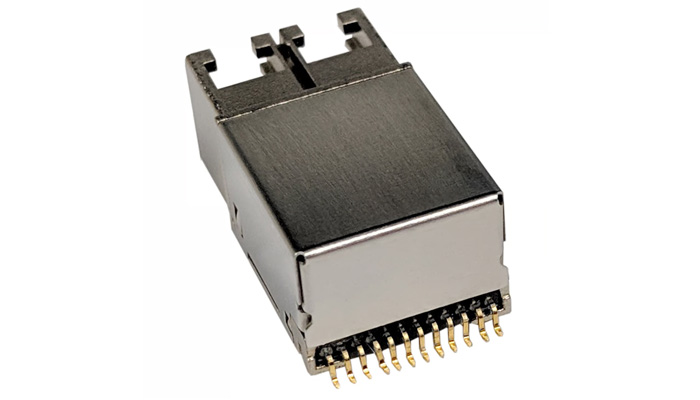

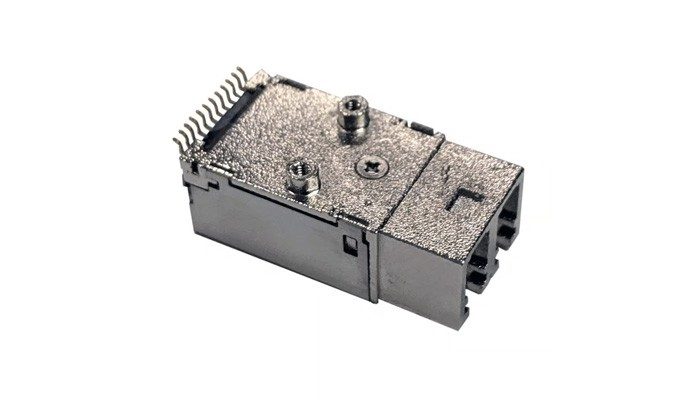

The RJ-28G-SR is a unique ruggedized fiber optic transceiver designed to provide peak performance in hazardous environments. It's a duplex transceiver module, compliant operation at the following data rates: 25.78 Gbps (25GBASE-SR) 28.05 Gbps (Fibre Channel 32GFC) This RJ optical transceiver is compliant to IEC-60825-1, class 1 laser eye safe, and supports Forward Error Correction (FEC) channel coding.

Jump To:
Specifications
Support Materials
Lets Talk
RJ-28G-SR Specifications
Part Number: 28G-SR
Data Range: 3.19Gbps to 28.05Gbps
Wavelength: 850nm VCSEL
Channel Configuration: RX/TX
Min. Optical Power: -3dBm
Max. Optical Power: -2.4dBm
RX Sensitivity Max: -5.8dBm
