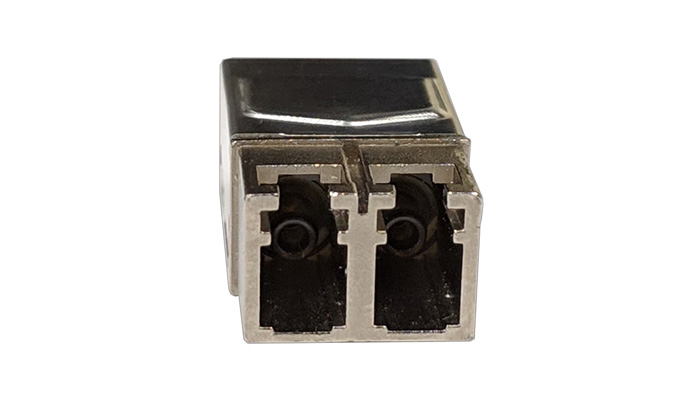

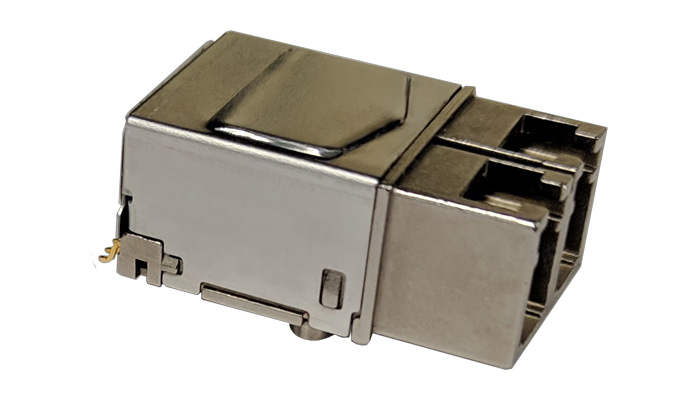

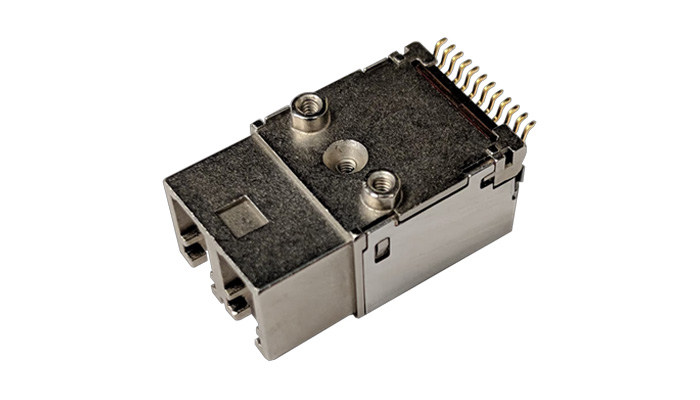

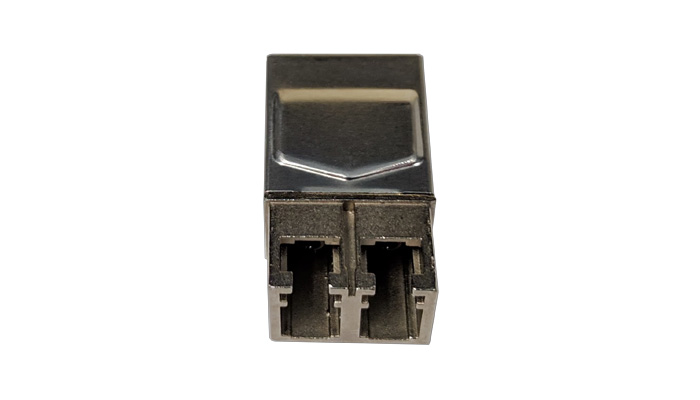

RJ-10G-SX-TX

Description

The RJ-10G-SX-TX is ideal for harsh environment connectivity because of its low cost, availability, and wide operating parameters. This transceiver is a dual transmitter module, supports data rates of 6Gbps to 10.3125Gbps with a typical reach of 82m on OM2, 300m on OM3 and 400m on OM4. It's compliant to IEC-60825-1, class 1 laser eye safe, has a solder-down 1x12 electrical interface with screw posts for securing module to host. It comes with enhanced status and diagnostics monitor interface with options for RoHS 6(6)
