RJ Product Family

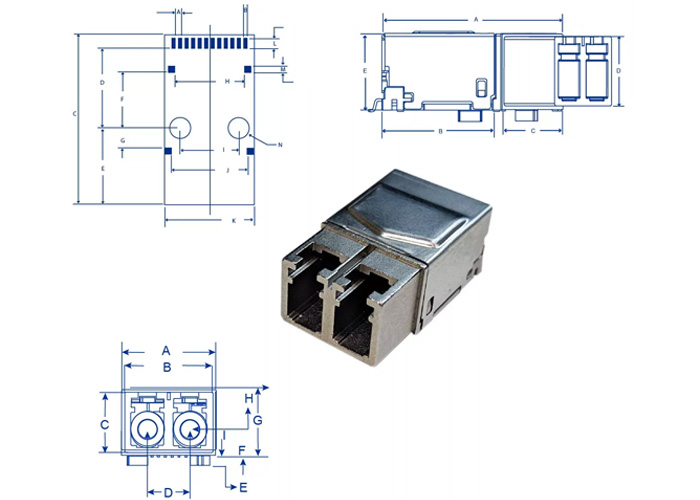

rj-10g-sx-tx-drawing

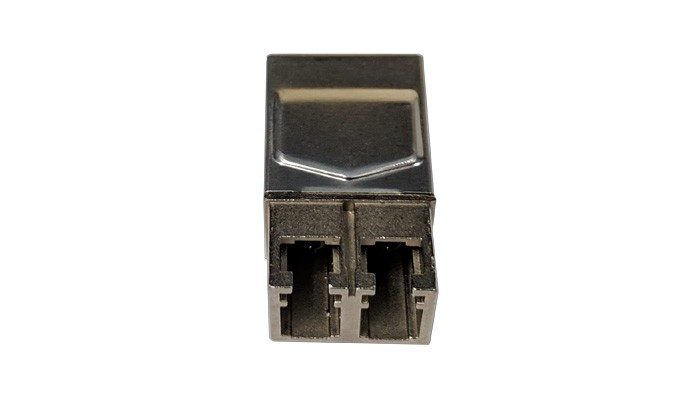

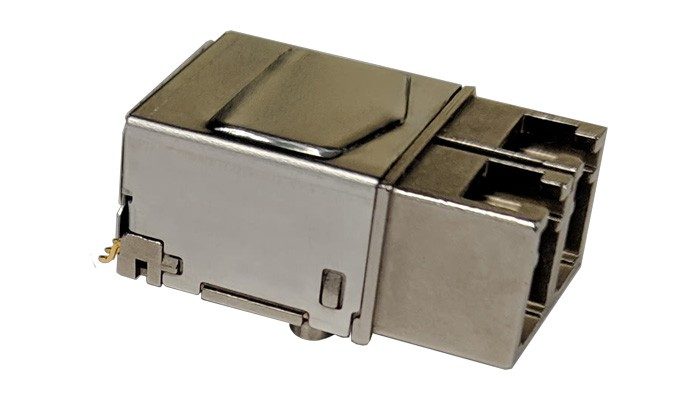

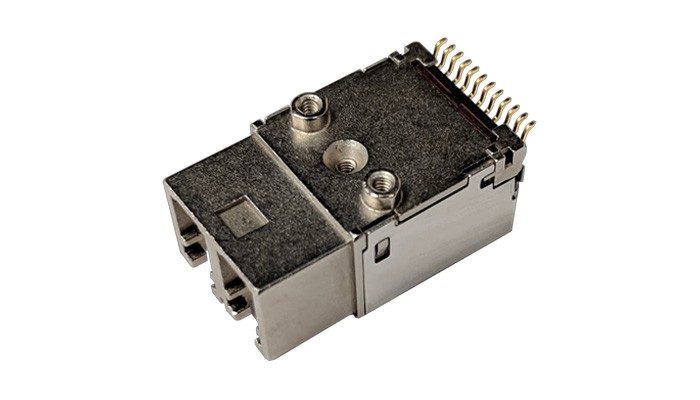

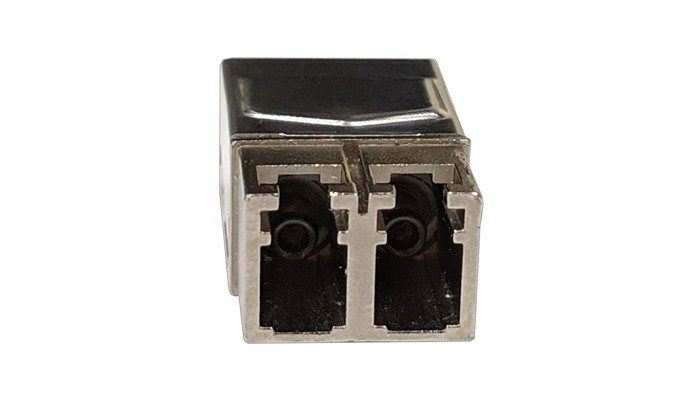

RJ-10G-LR4

Description

The RJ-10G-LR4 is a duplex rugged optical transceiver that supports a data rate of 6-10Gbps and operates on the CWDM wavelengths, with a wideband PIN receiver, a solder-down 1x12 electrical interface, this transceiver has duplex LC or ARINC 801 receptacle options.

RJ-10G-LR4 Specifications
Part Number: RJ-10G-LR4
Wavelength: 1271, 1291, 1311 and 1331nm
Channel Configuration: RX/TX
Min. Optical Power: -5dBm
Max. Optical Power: 0.5dBm
RX Sensitivity Max: -14dBm
