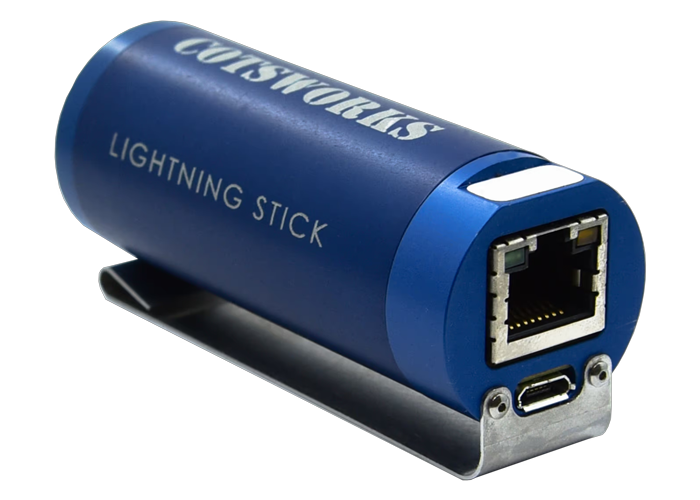

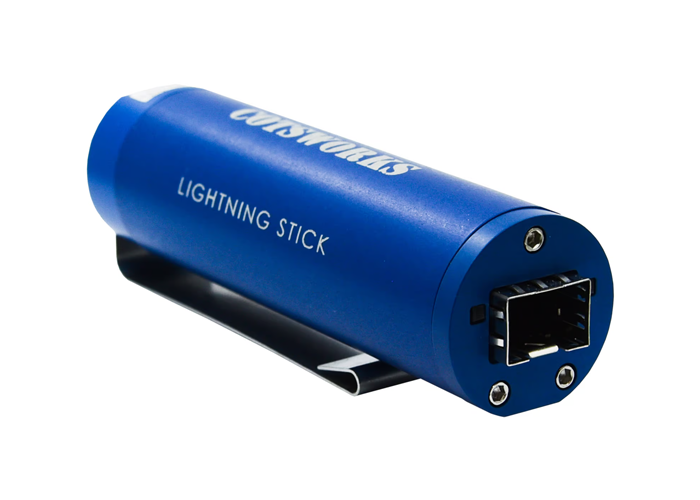

Lightning Stick™

The Lightning Stick™ is a rugged, secure, lightweight, and portable, ethernet converter and test device. Having an extremely small package, all-metal case, it maximizes portability and enhances access to fiber or copper connections.

• All metal case is rugged and secure but also
  lightweight, portable, easy to handle
• Comprehensive network switch support with 802.3az energy efficient ethernet
• 100BASE-X and 1000BASE-X Fiber Interfaces
• Multimode or Single Mode optics
• 10/100/1000Base-T copper port speeds
• Robust networking support with the latest generation
  MarvellTM switch technologies
• 1Mb packet buffer memory with true non-blocking switch performance
• –20°C to +70°C operating temperature
• 10Kb jumbo frame support Industry standard micro-USB plug for desktop communication, power, and firmware updates.
• Frame based flow control supports zero packet loss under temporary congestion

• Low Insertion loss, Low Return Loss
• Keyed for secure connection
• Standard 1.25 mm ceramic ferrule and sleeve
• Crimp sleeve design for secure fiber termination
• Designed for single-mode and multimode applications
• Available in pull-proof and non-pull-proof configurations
• Can be inserted and removed from the connector with size #16 removal tool
• Available for 900µm, 1.8 mm, and 2.00 mm fiber optic cables
