Fiber Type and Jacketing

fiber

Moog offers custom designed fiber optic cable solutions to provide unique mechanical, optical, and cost saving benefits. Fiber cabling capabilities include:

  • Multimode or Single Mode Cable Support
  • Singlecore and Multicore Plastic Optical Fiber
  • Ribbon and round multi-fiber cable
  • Sealed fiber to laser interface
  • Fixed attenuator cables
  • Splicing
  • Gold tipped cables
CABLE ASSEMBLIES ORDERING GUIDE

Products

TENSOLITE

GORE

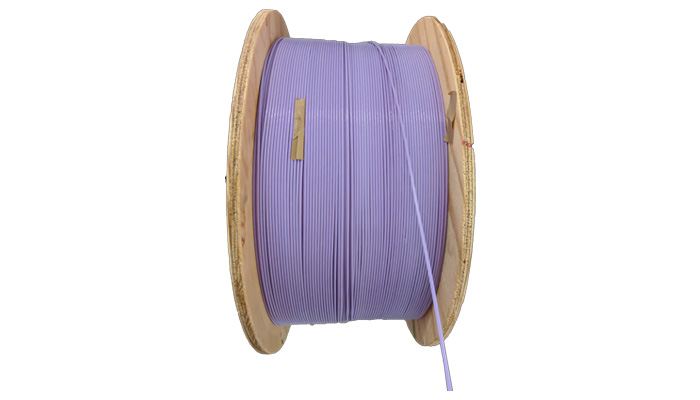

fiber-jacketing

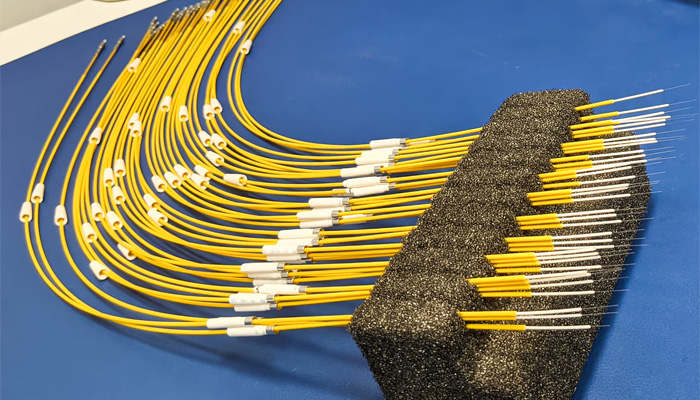

fiber-jacketing

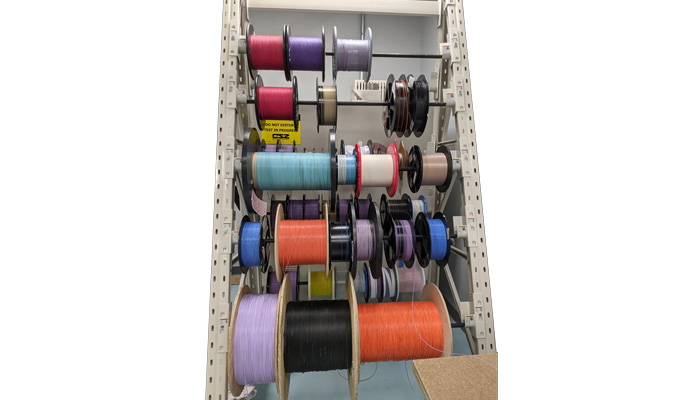

fiber-jacketing
Industry Name Operating Temperature Storage Temperature Jacket Material Color SM MM POF PMMA PTFE PVC Simplex Duplex Multi-Channel Jacket Diameter
DRAKA® Various Various Various Various • •       • • • • Various
LINKBRIGHT™ -40ºC to 85ºC -55ºC to 85ºC Fluoropolymer Yellow & Purple   •         •     1.8mm
LINKBRIGHT PLUS™ -40ºC to 85ºC -55ºC to E1585ºC Fluoropolymer Purple   •         •     1.8mm
MITSUBISHI® -40ºC to 105ºC -40ºC to 105ºC Crosslinked Polyethylene Black   • • •     •     1.5mm
CORNING Various Various Various Various • •       • • • • 1.8-2mm
OFS Various Various Various Various • •   •     •   • 800µm-2mm
TENSOLITE® -55ºC to 85ºC -55ºC to 85ºC Fluoropolymer Purple • •         •     1.8-3mm
GORE -60ºC to 135ºC -60ºC to 135ºC Fluoropolymer Various • • • • • • • • • 900µm-2mm
